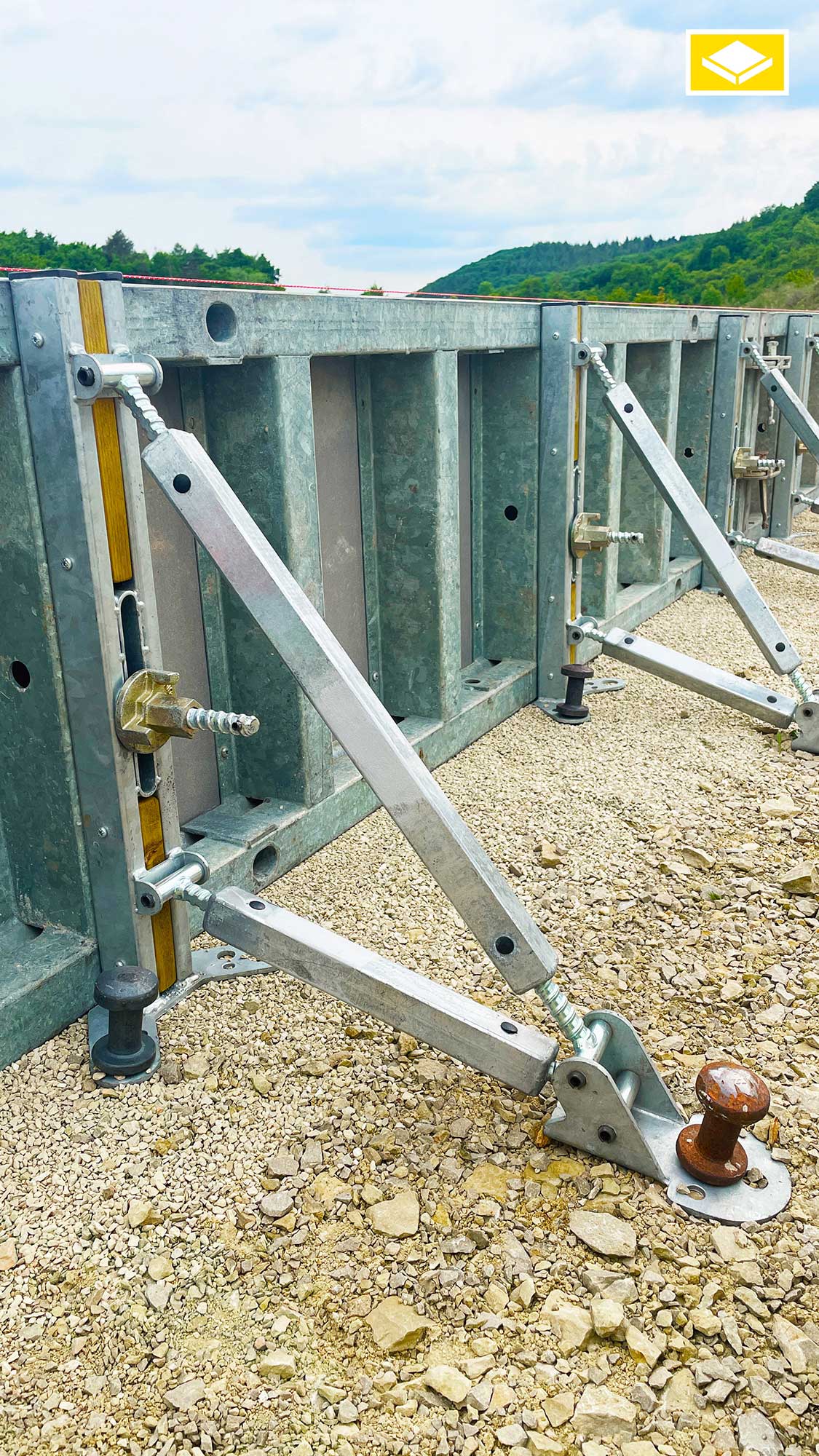

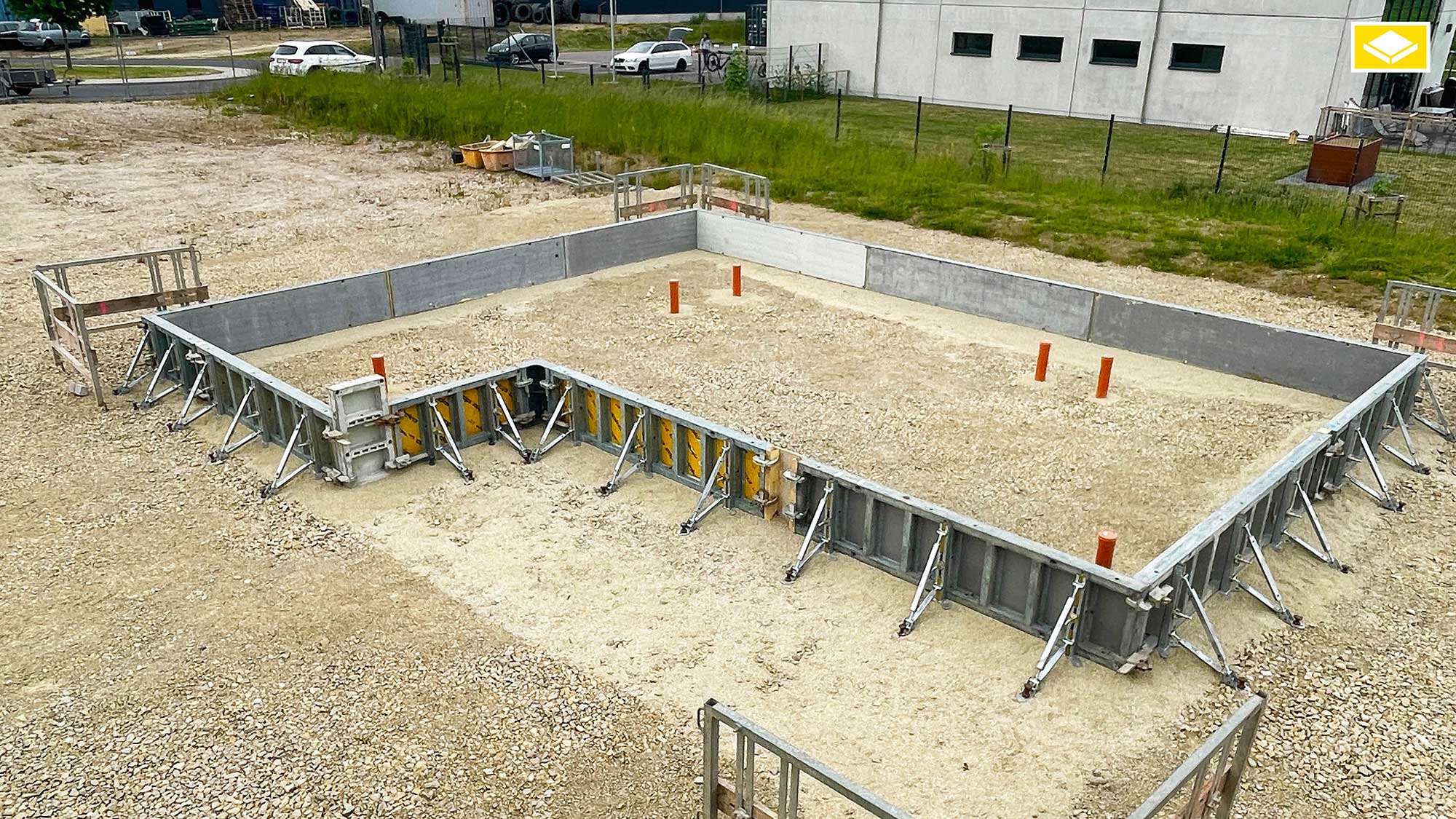

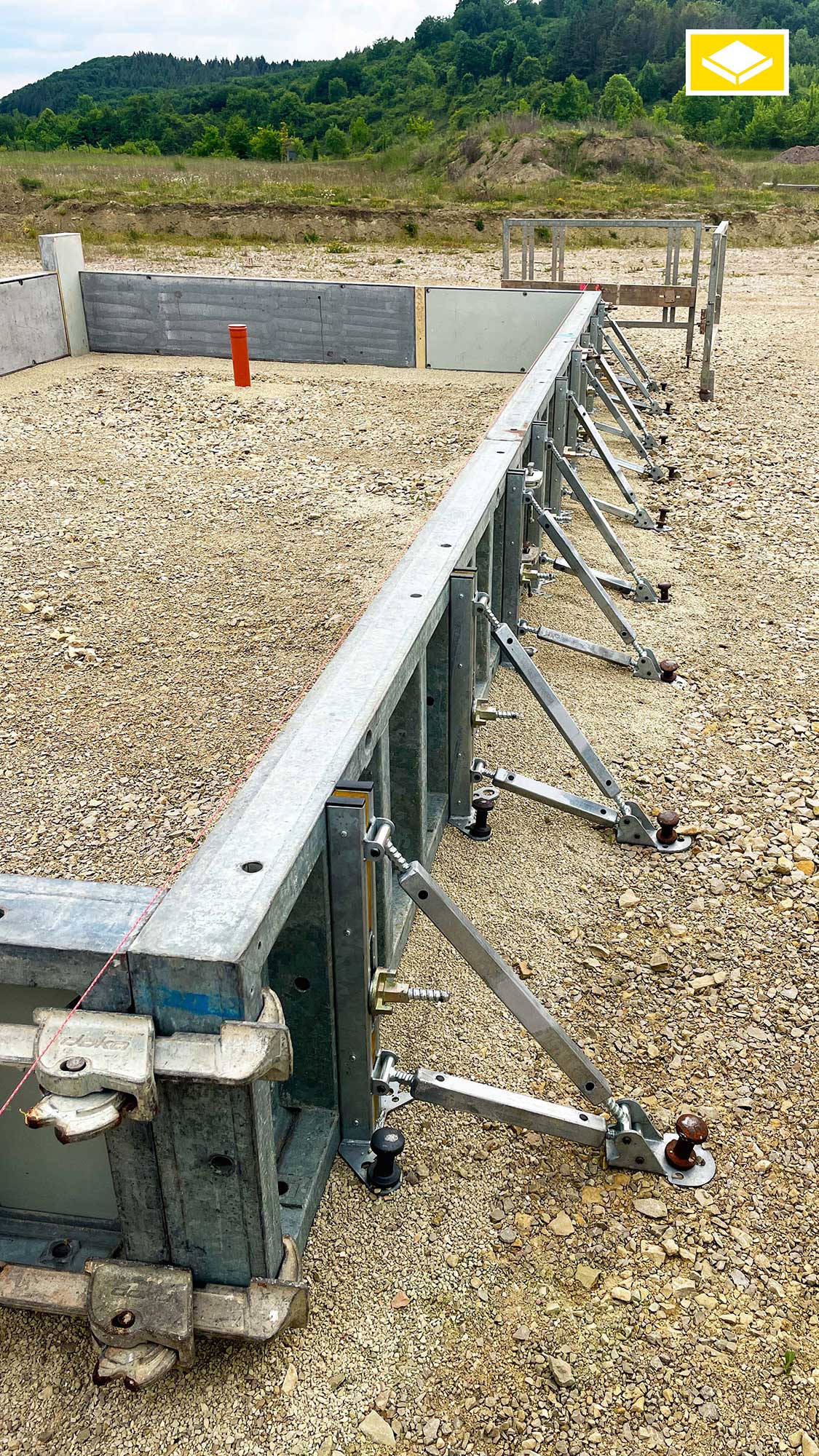

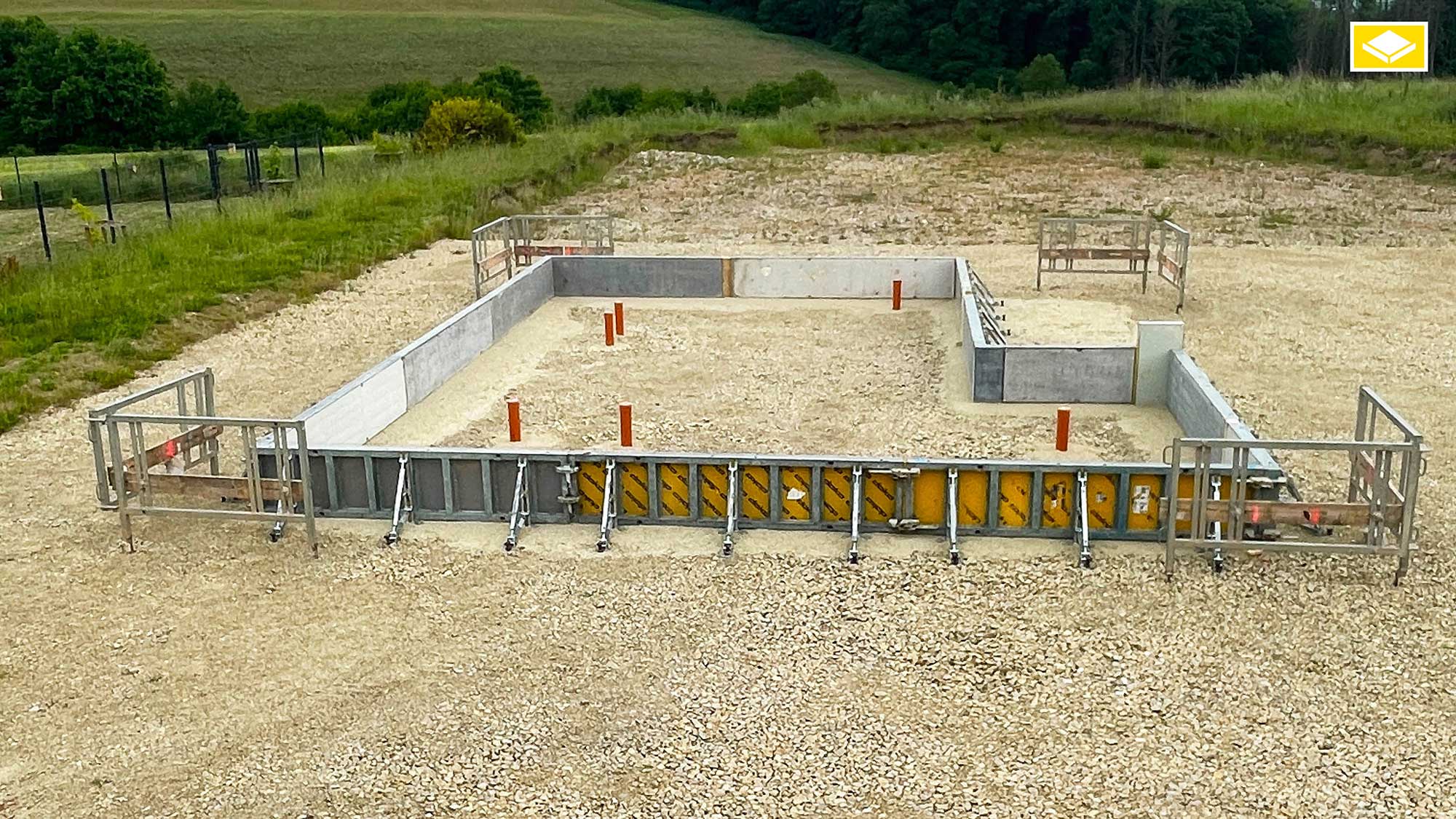

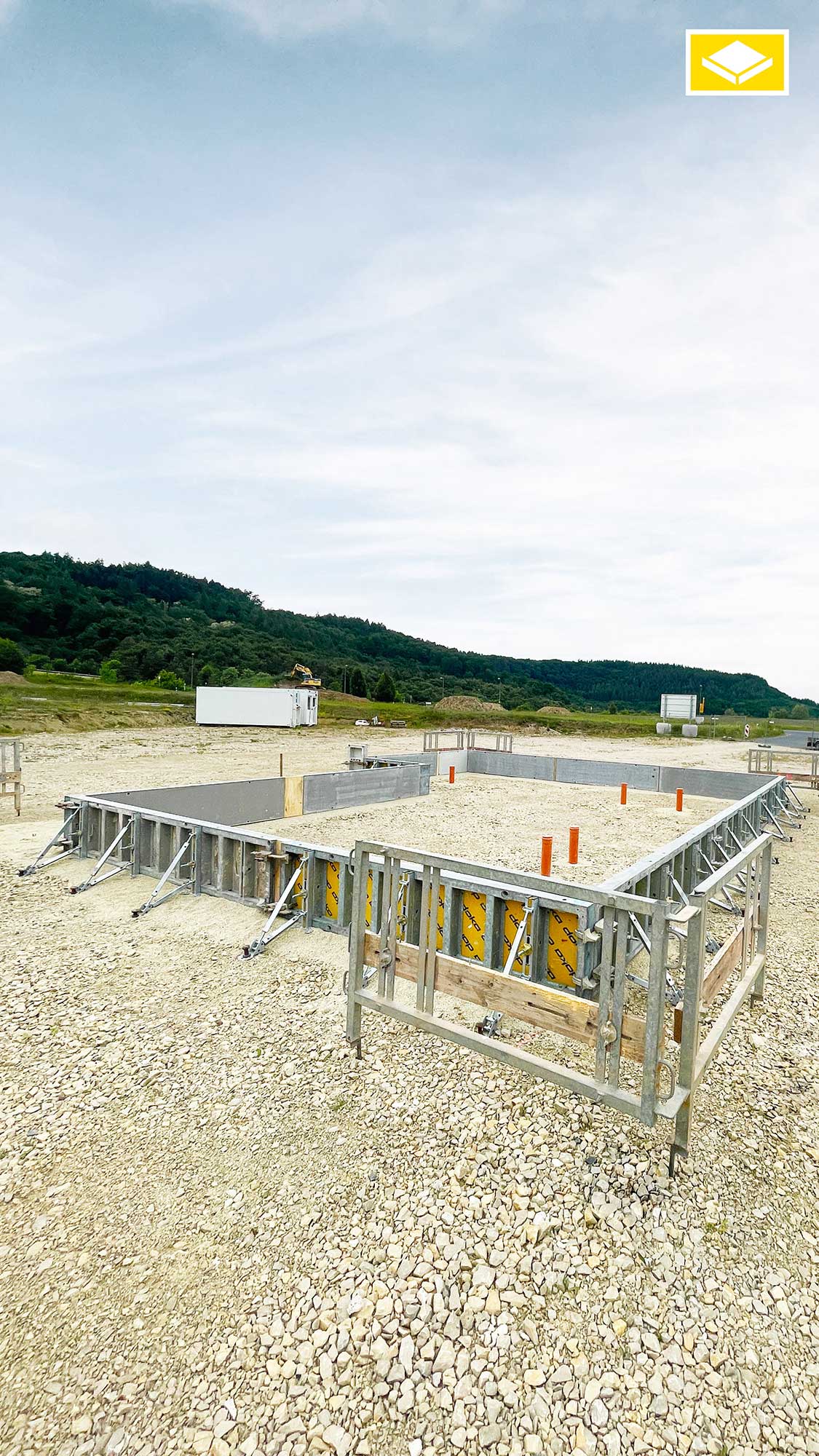

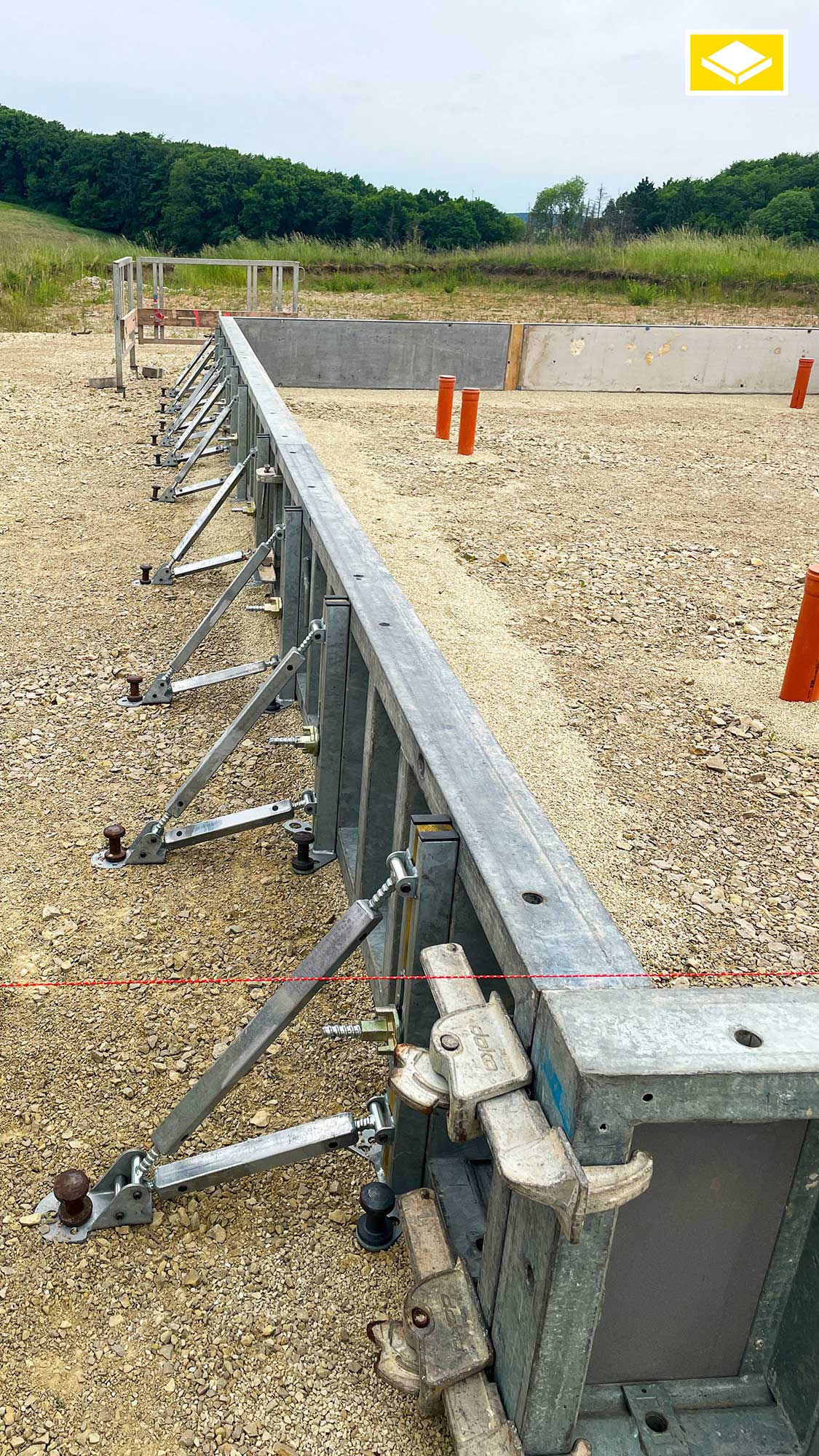

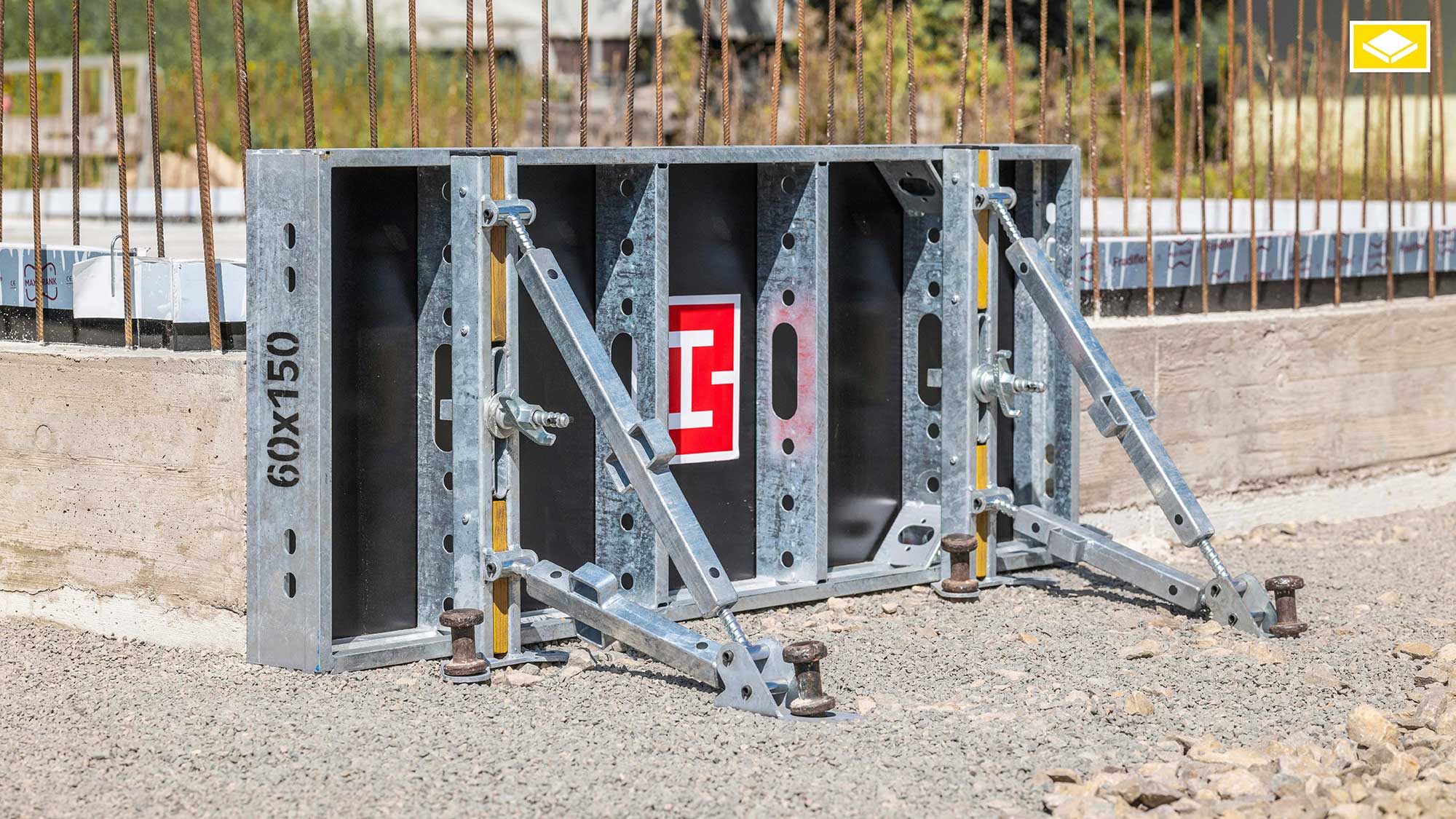

Specifically designed for the one-sided formwork support of concrete floor slabs, foundations and height differences in concrete floor slabs and ceilings, as well as upstand beams and parapets. The robust workmanship and high degree of flexibility ensure stable support and make the SEKI support frame a sure winner.
Fits everything!
SEKI Support Frame

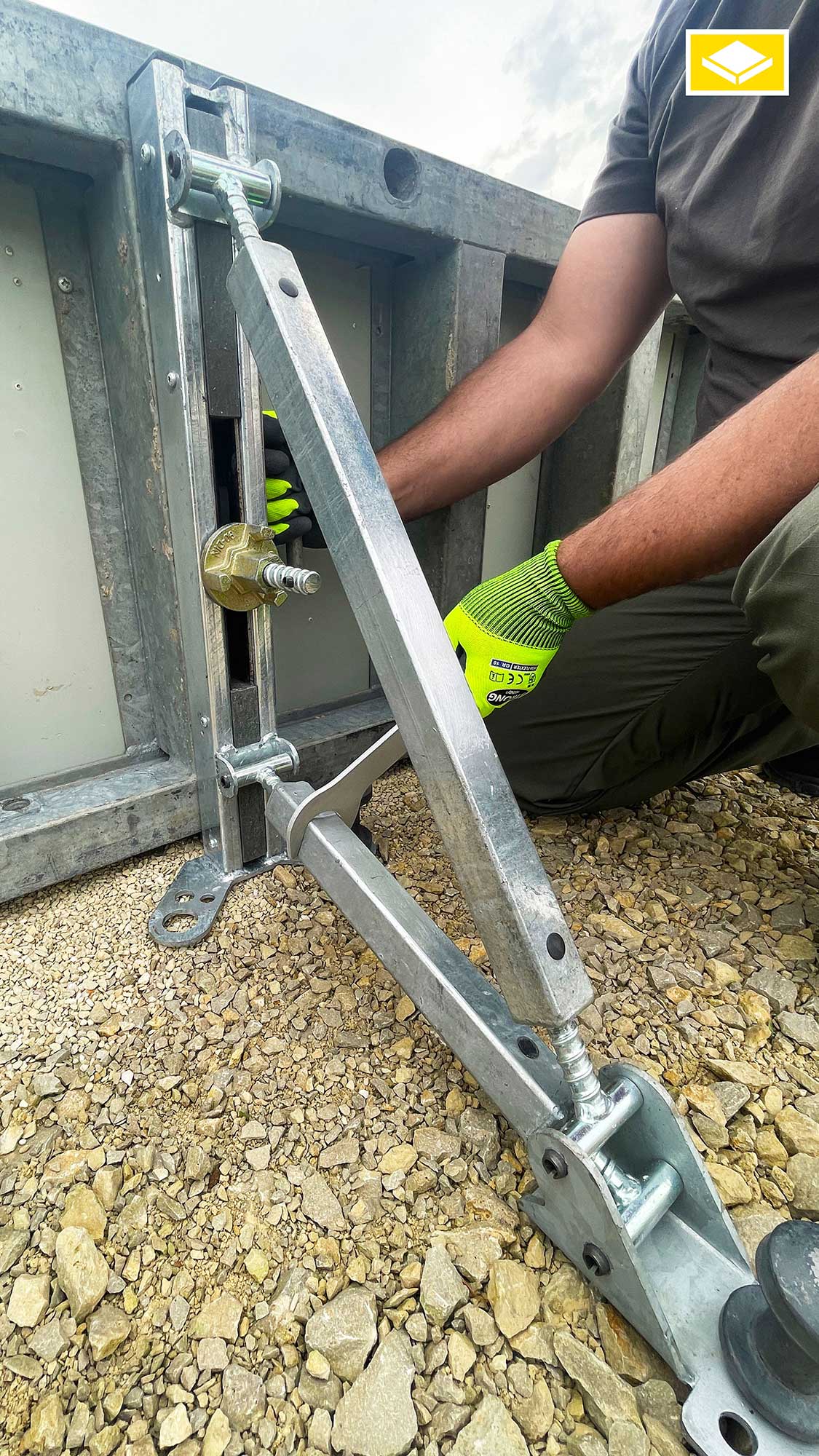

Height adjustable
and retractable
hammer head screws

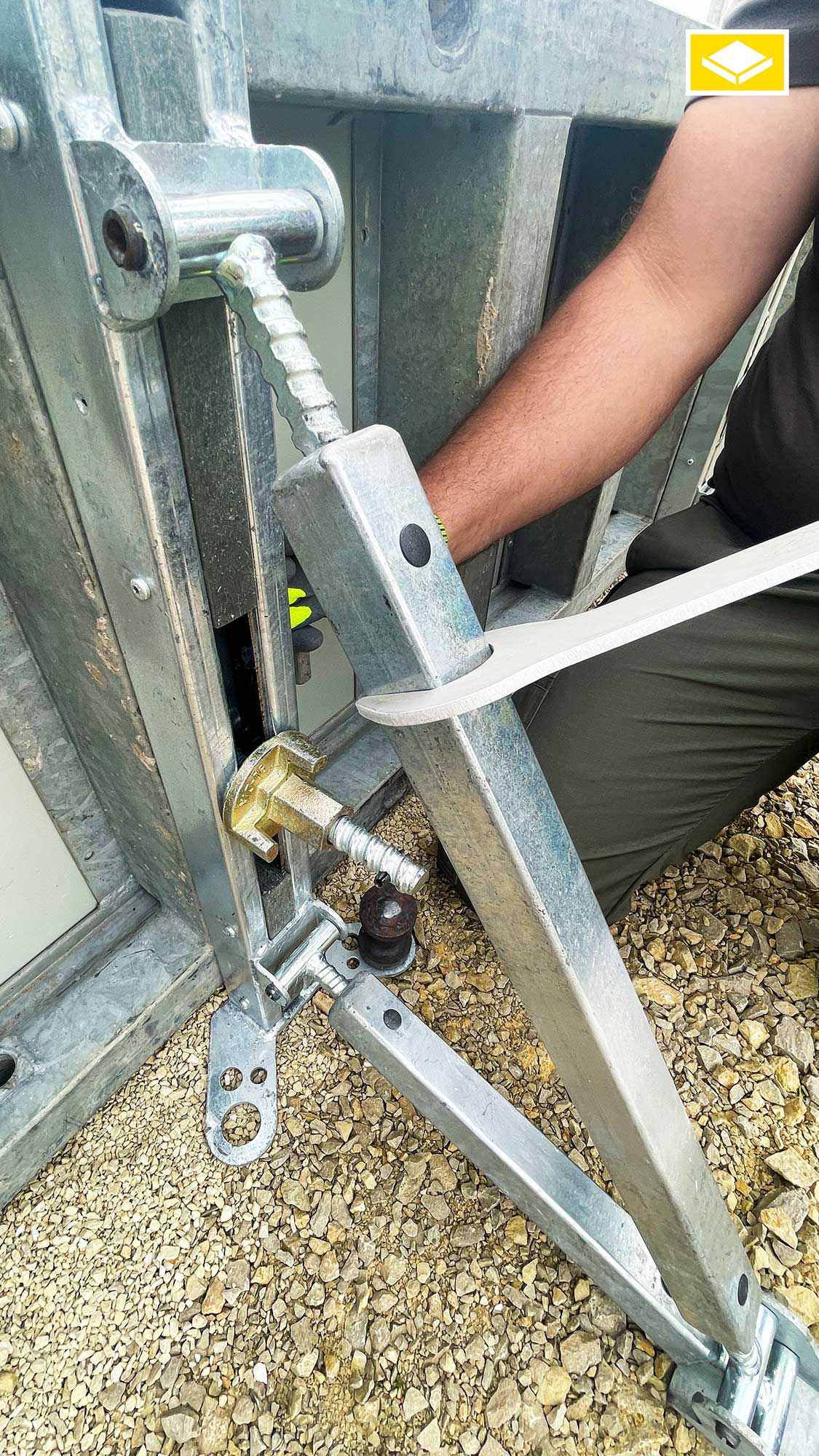

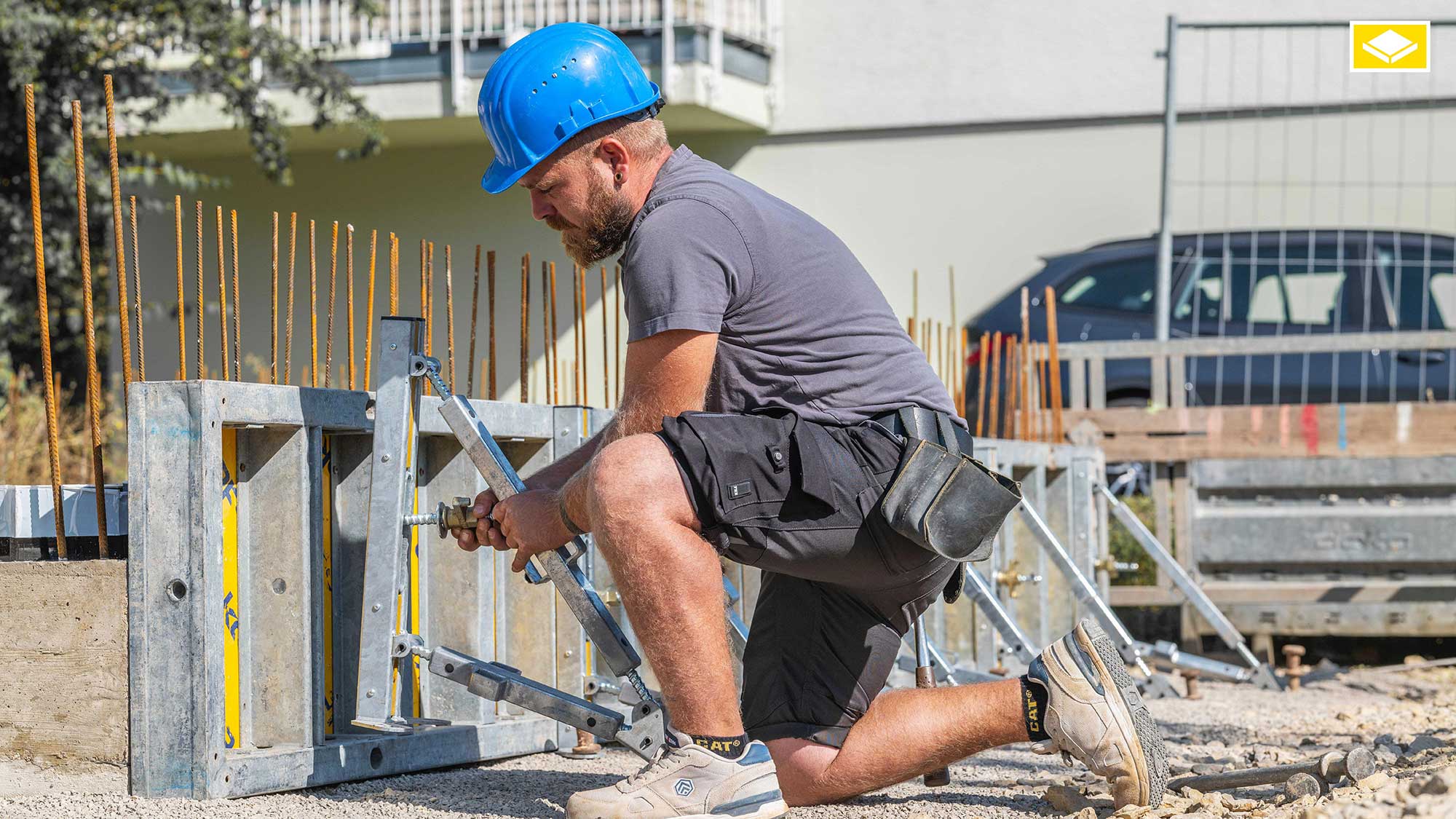

The right hammer head screw for every formwork system – so you are always on the safe side. As the hammer head is retractable, you can also connect the support frame to the wooden formwork using the wood inlays. The splint at the end of the hammer head screw facilitates the turning of the screw into the anchor profile and always shows the orientation of the hammer head.
Compatible with
wooden formworks
The support frame also functions without a hammer head screw. It is not just compatible with manufacturer-specific frame formworks, but also with classical wooden formworks – you can't be more flexible than that!

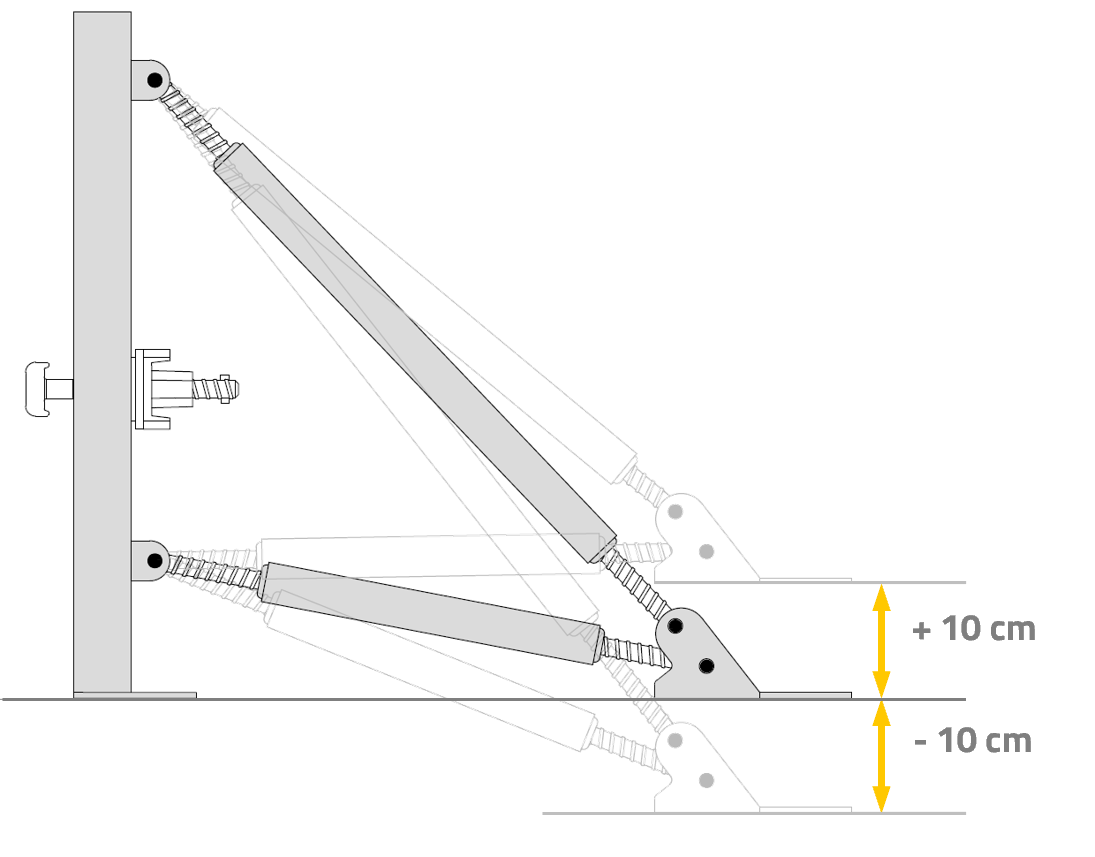

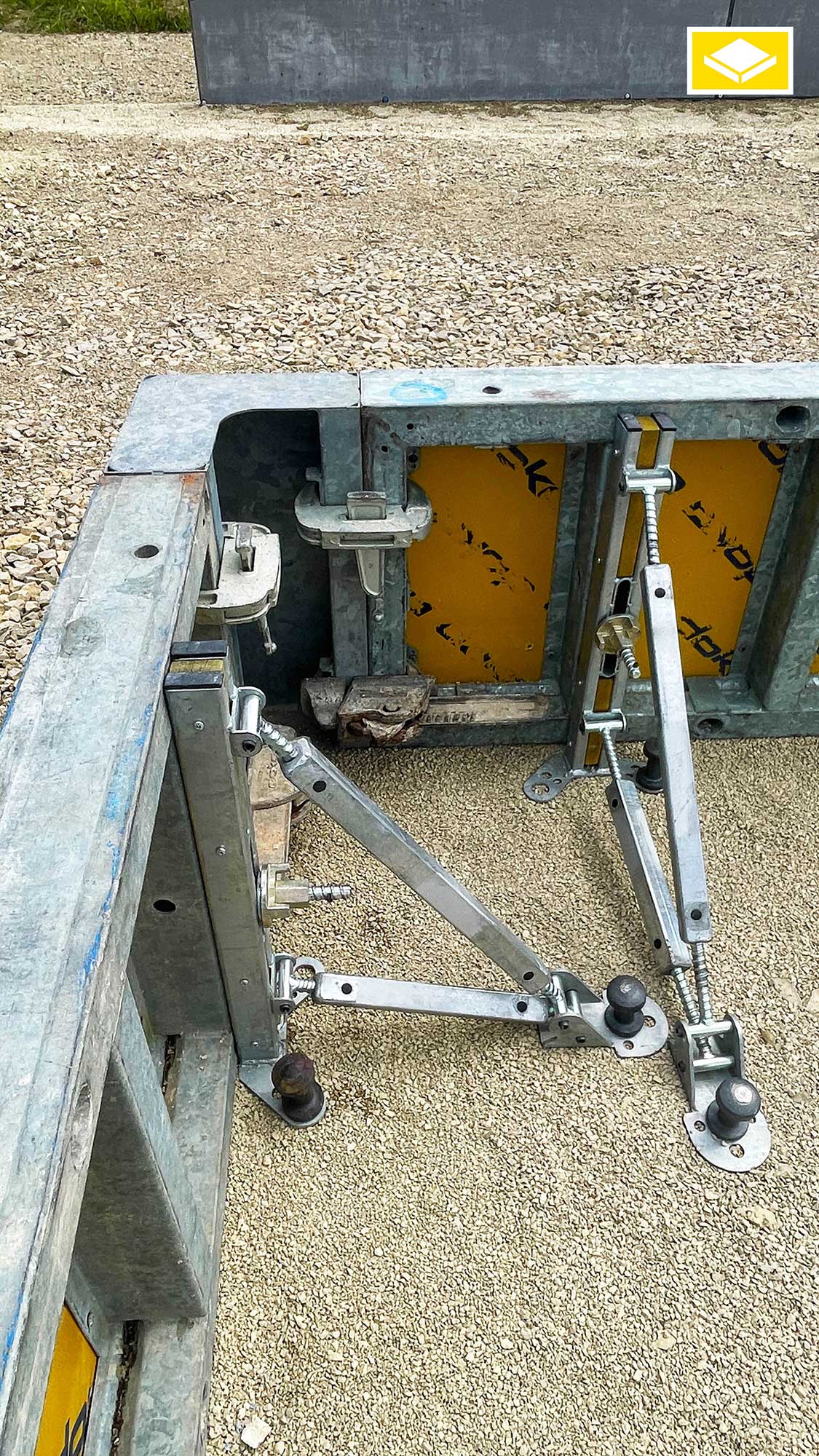

Infinitely variable
for all requirements

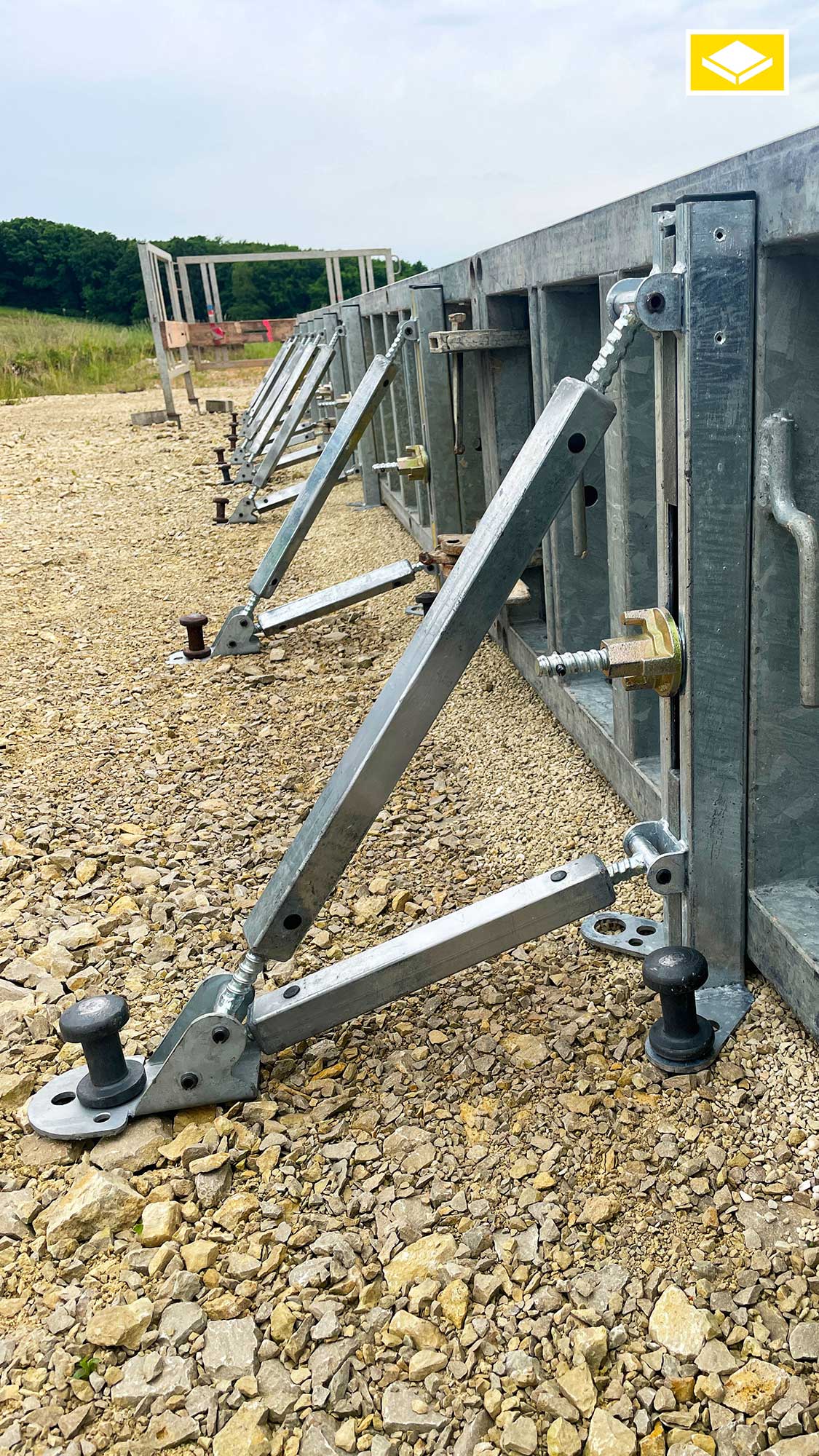

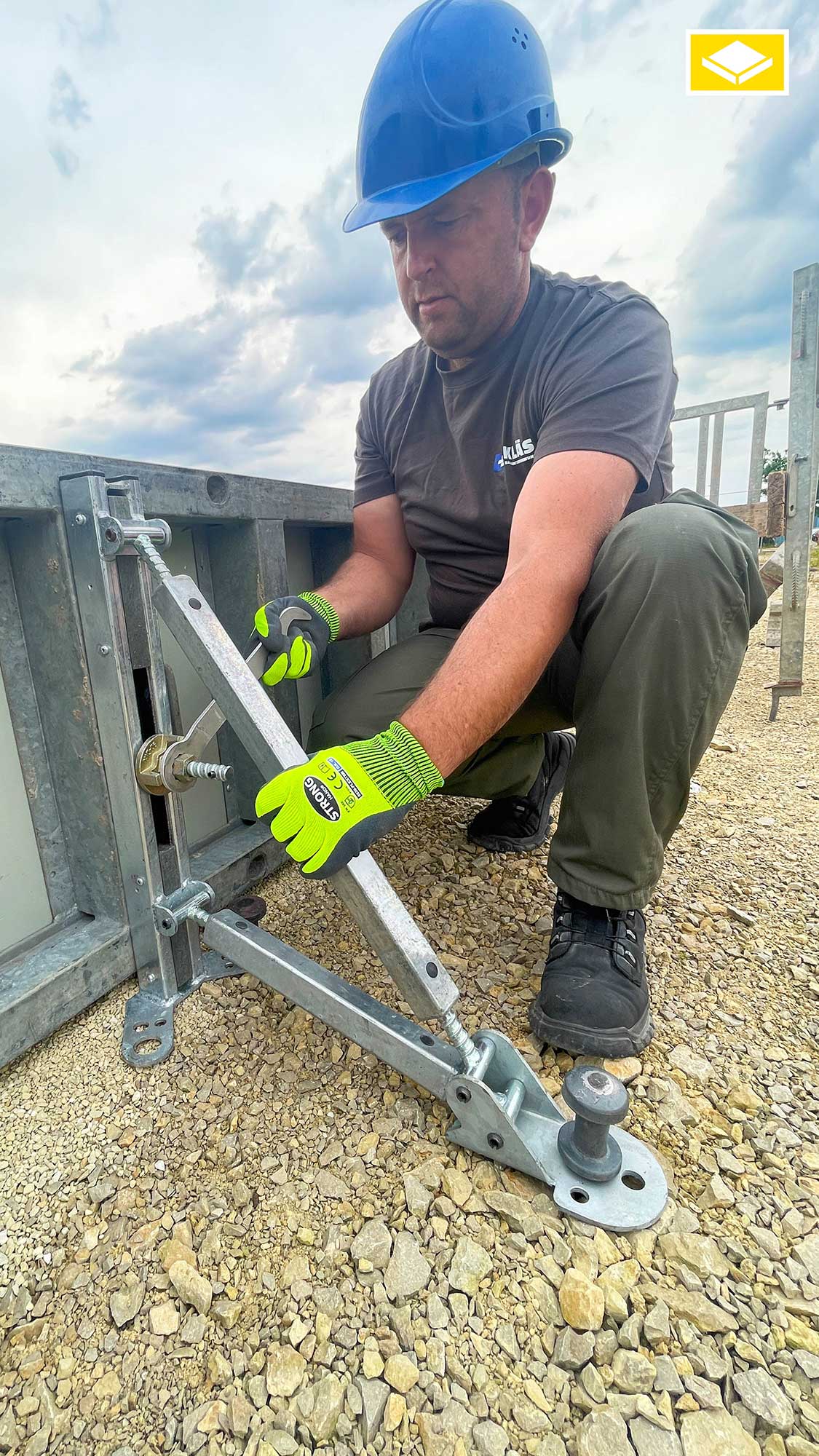

When floor slabs are concreted, the installation surface for the support frame is often uneven or sloping. In these instances, the rear footplate can easily be adjusted in height by up to 20 cm (10 cm up or down).

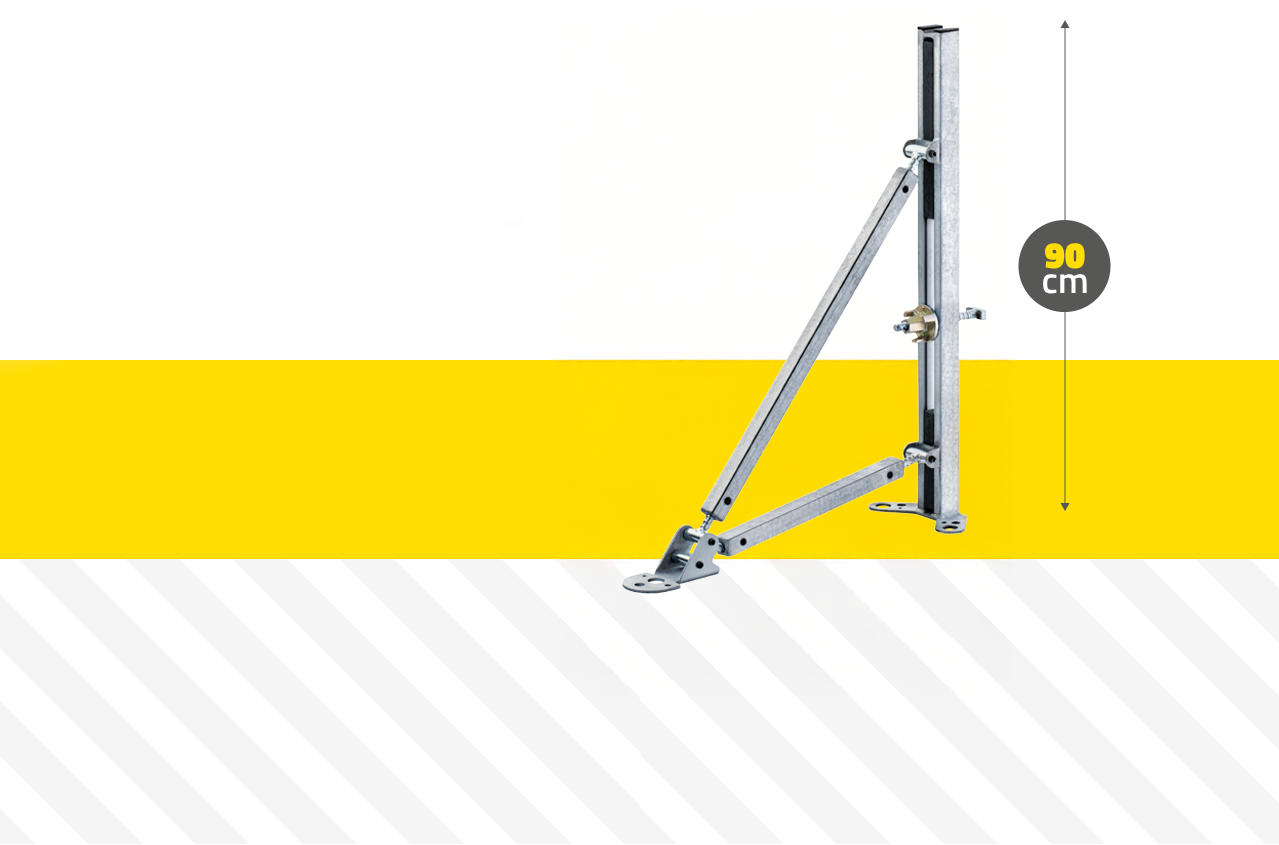

90 cm for extra-large projects
SEKI Support Frame XL
Sometimes the foundation is bigger, and then a 60 cm high support frame is not sufficient. For these cases, we can supply the SEKI support frame in an XL version with a height of 90 cm.

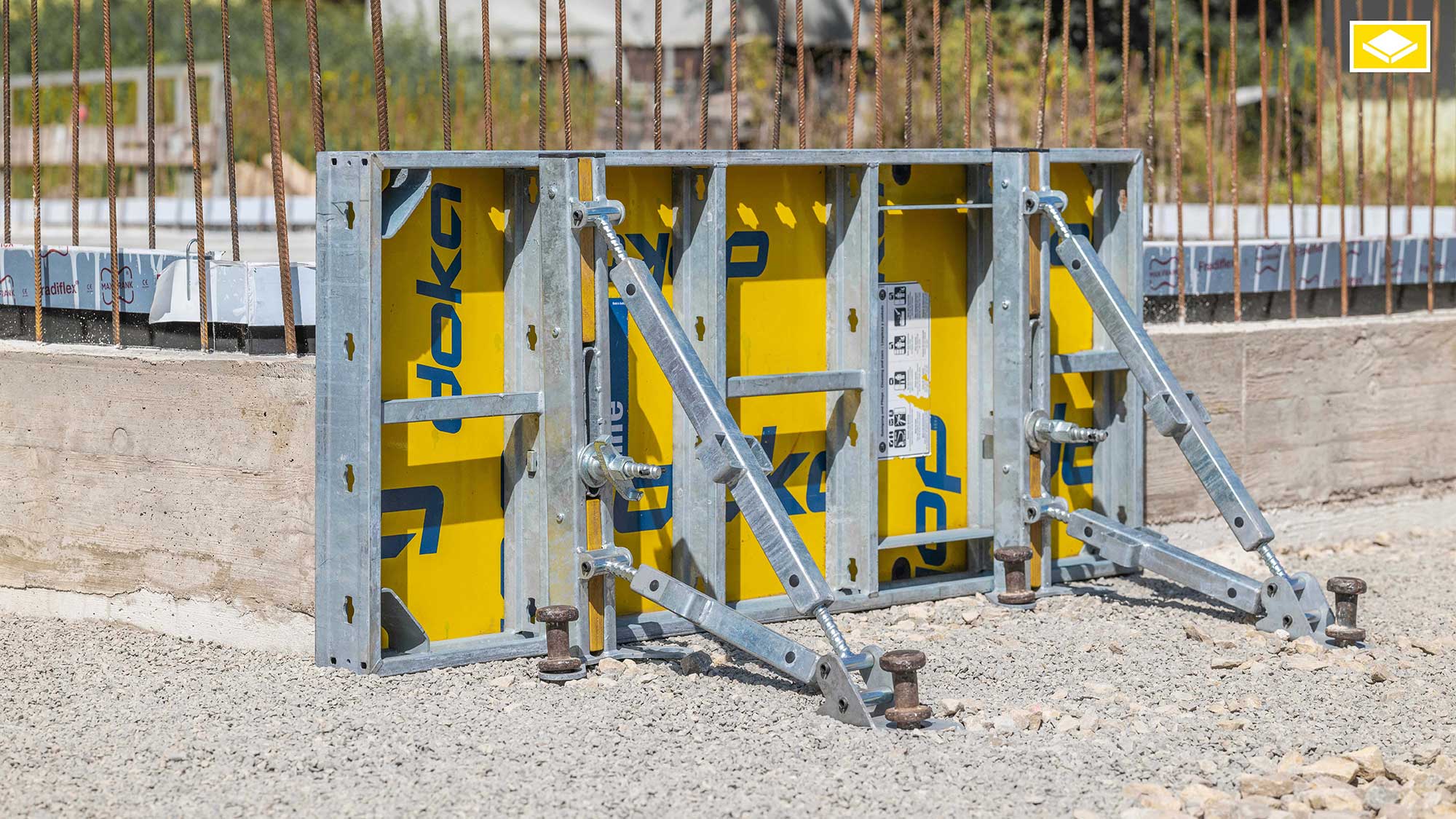

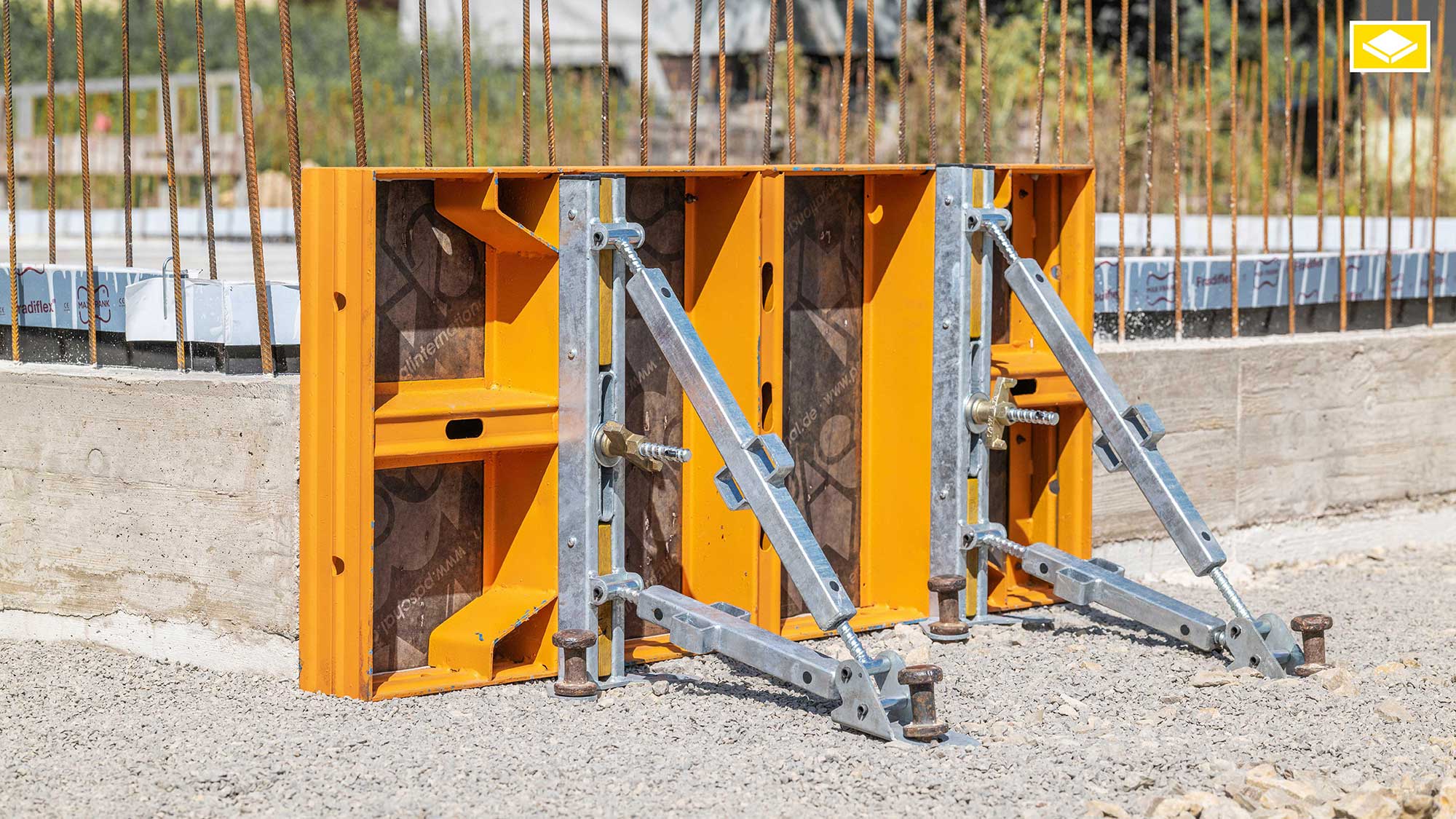

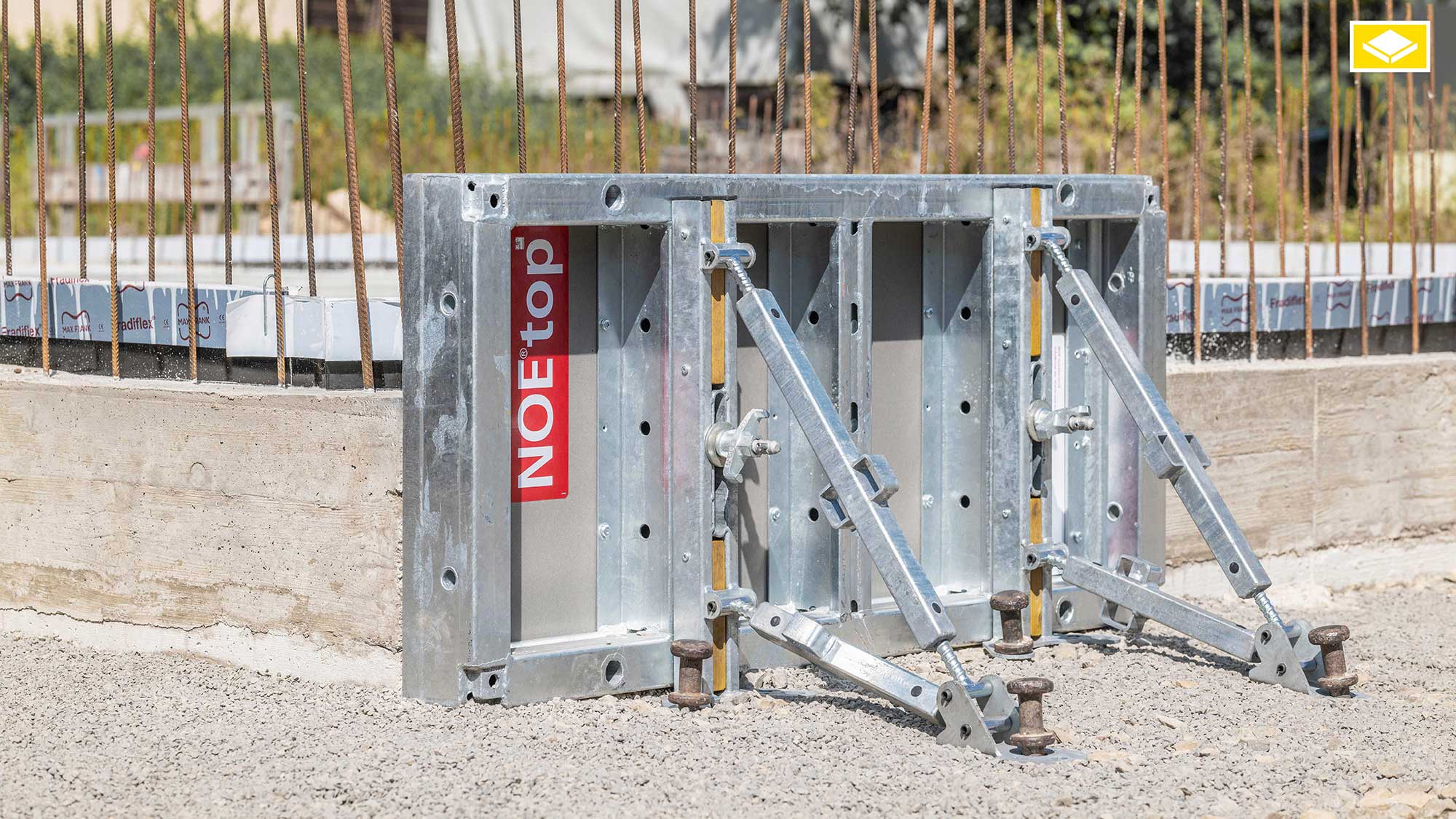

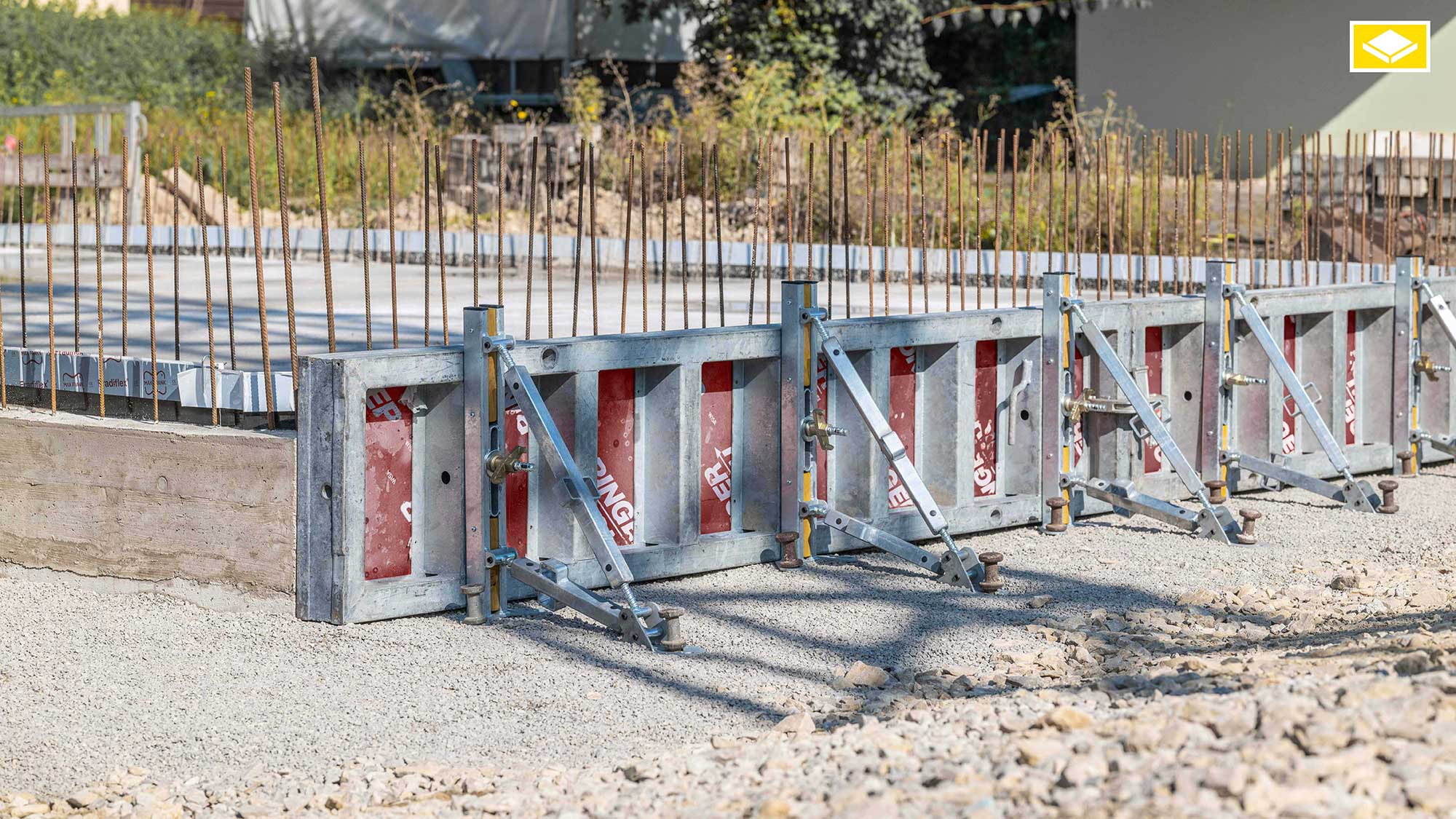

Whatever the connection
Simply flexible
The best technology is useless if it is not compatible. The connection between support frame and frame formwork must fit.
That's why we don't just offer the SEKI support frame with manufacturer-specific hammer head screws permanently mounted on the frame, but also with hammer head screw sets that you can assemble yourself. Our support frame can also be supplied without hammer head securing – i.e. as a blank solution. This gives you maximum flexibility when using different form framework systems, such as a roof lath or different hammer head screws.

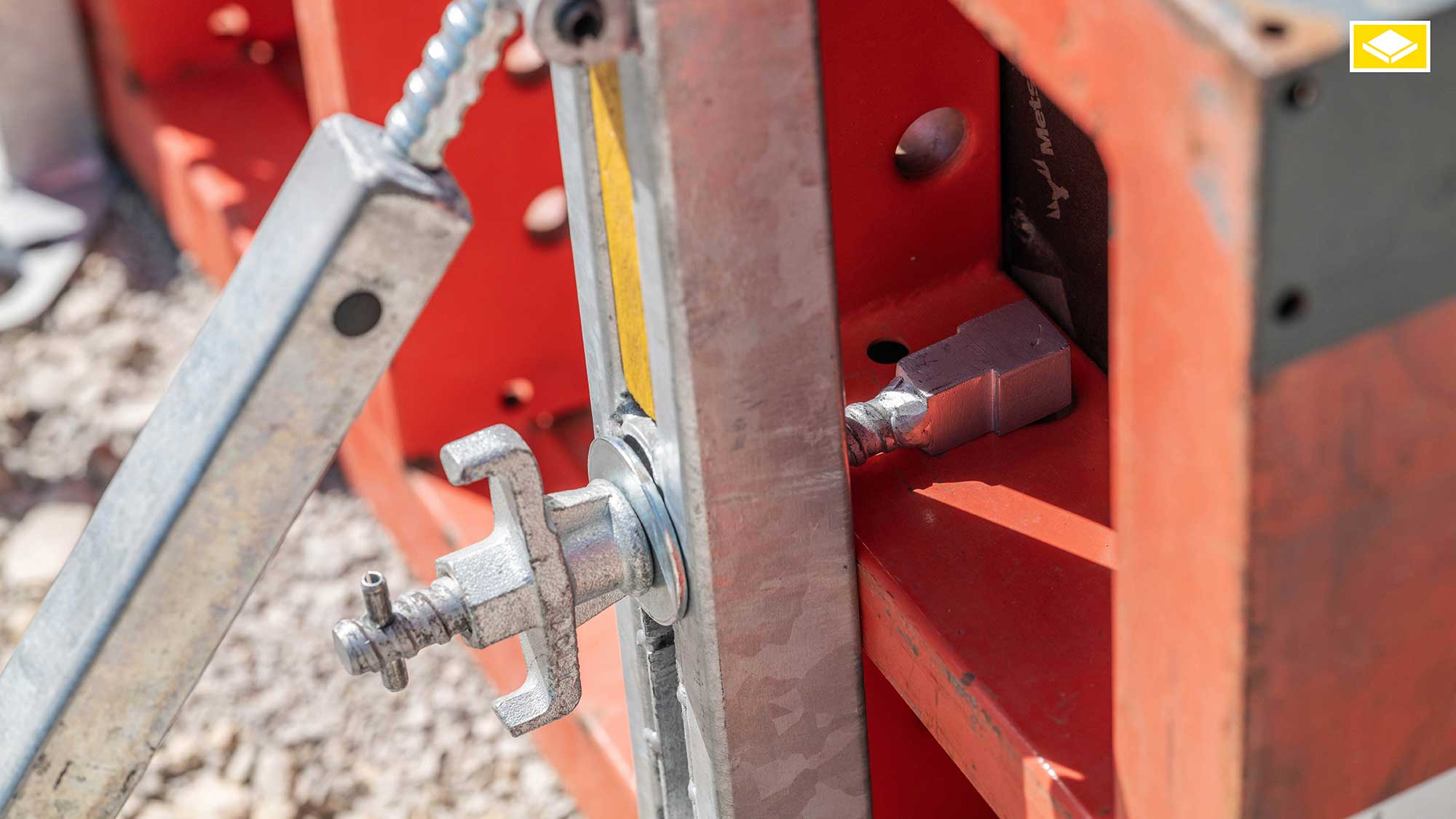

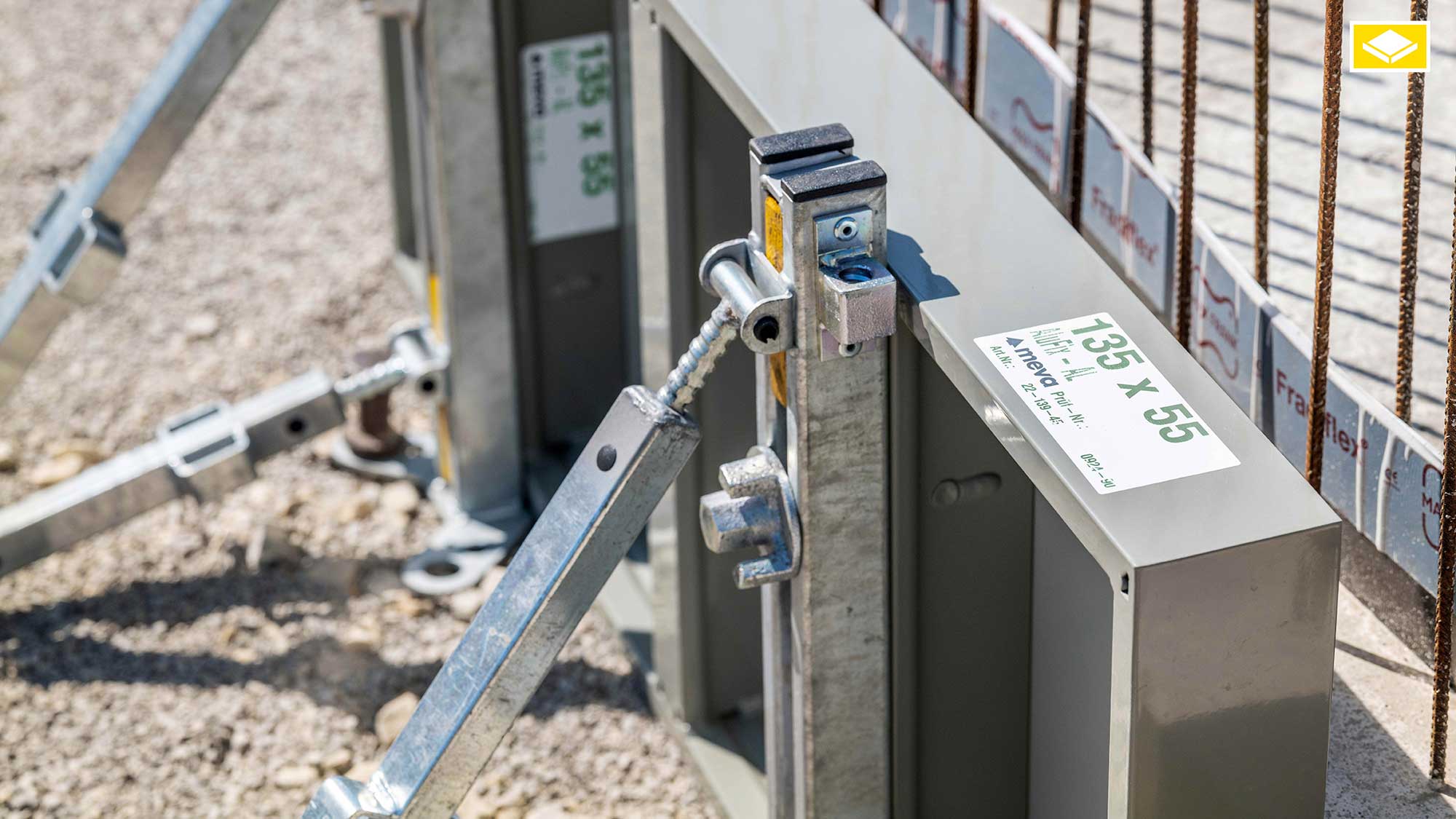

The right hammer head screw for every manufacturer
Maximum
compatibility

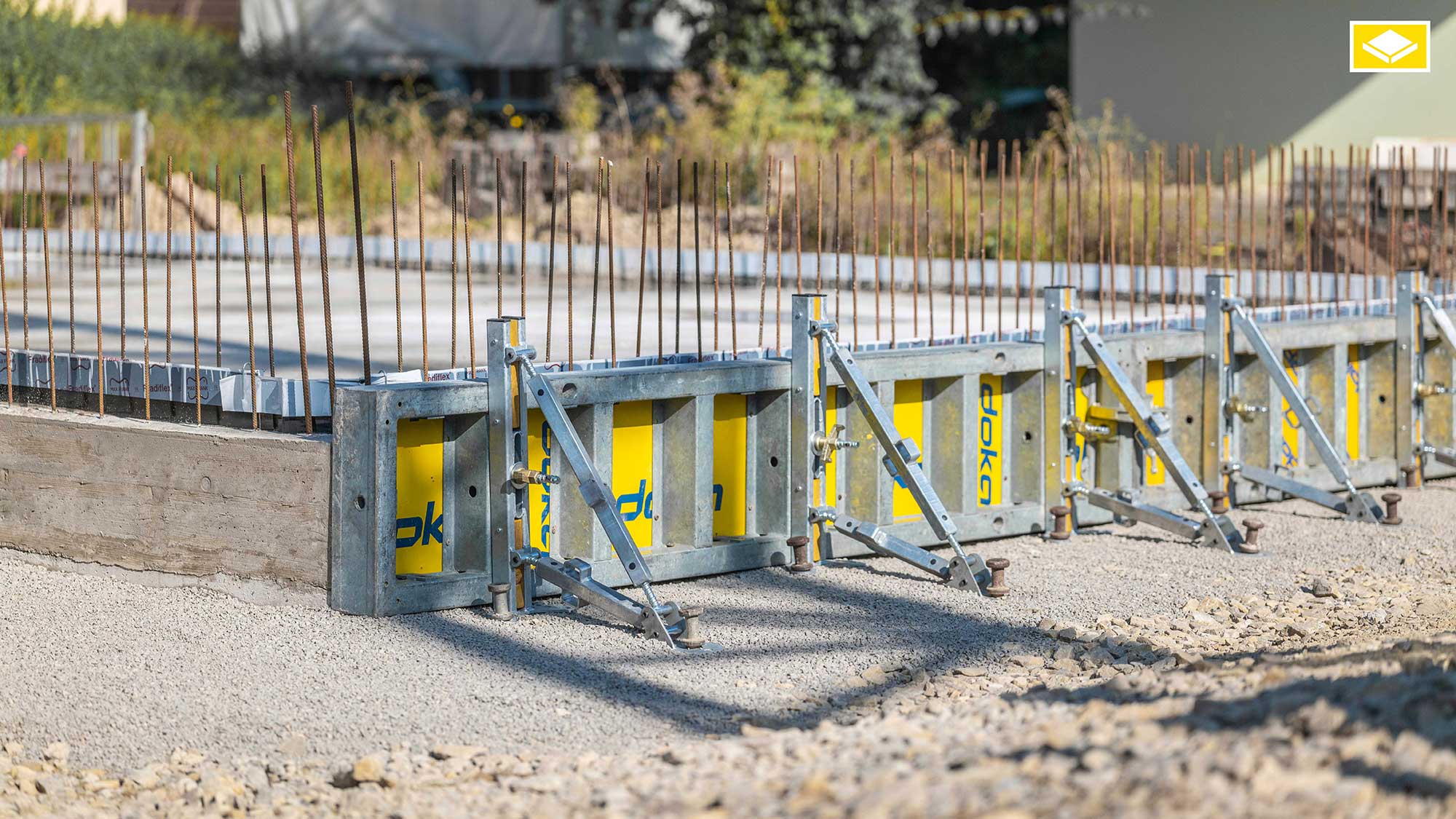

Every system formwork manufacturer has its own mounting rail. This is why we have developed different hammer head screws – the right screw for every anchor profile. Contractors using different frame formwork systems simply need to change the hammer head screw in the SEKI support frame in order to attach it to another frame formwork.
Products
Discover the difference and make everyday life on the construction site easier with the SEKI support frame. Below you will find an overview of all versions.
SEKI Support Frame 60 with hammer head securing
| Article no. | Description | Height | Support width | Weight |
|---|---|---|---|---|
| 903 020 201-0 | SEKI Support Frame 60 v1 | 60 cm | 58 - 80 cm | 8,5 kg |
SEKI Support Frame 60 without hammer head securing
| Article no. | Description | Height | Support width | Weight |
|---|---|---|---|---|
| 903 020 201-1 | SEKI Support Frame 60 v2 | 60 cm | 58 - 80 cm | 8,2 kg |
SEKI Support Frame 90 with hammer head securing
| Article no. | Description | Height | Support width | Weight |
|---|---|---|---|---|
| 903 020 202-0 | SEKI Support Frame 90 v1 | 90 cm | 70 - 95 cm | 11,5 kg |
SEKI Support Frame 90 without hammer head securing
| Article no. | Description | Height | Support width | Weight |
|---|---|---|---|---|
| 903 020 202-1 | SEKI Support Frame 90 v2 | 90 cm | 70 - 95 cm | 11,0 kg |
